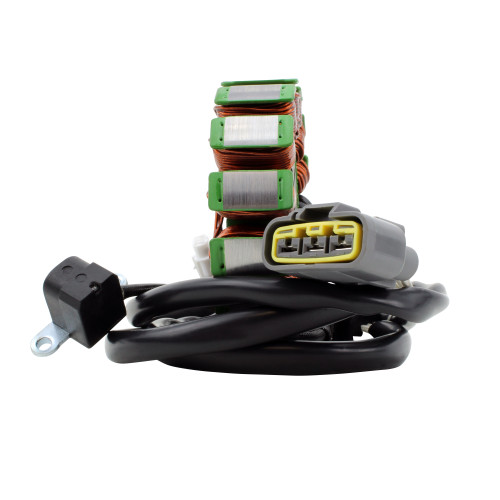

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Dimensions :
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm, 1100 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500 ohms +/-20%
2022 Yamaha YFM 700 Kodiak
2022 Yamaha YFM 700 Grizzly
2021 Yamaha YFM 700 Kodiak
2021 Yamaha YFM 700 Grizzly
2020 Yamaha YFM 700 Kodiak
2020 Yamaha YFM 700 Grizzly
2019 Yamaha YFM 700 Kodiak
2019 Yamaha YFM 700 Grizzly
2015 Yamaha YFM 700 Grizzly
2014 Yamaha YFM 700 Grizzly
2014 Yamaha YFM 550 Grizzly
2013 Yamaha YFM 700 Grizzly
2013 Yamaha YFM 550 Grizzly
2012 Yamaha YFM 700 Grizzly
2012 Yamaha YFM 550 Grizzly
2011 Yamaha YFM 700 Grizzly
2011 Yamaha YFM 550 Grizzly
2010 Yamaha YFM 700 Grizzly
2010 Yamaha YFM 550 Grizzly
2009 Yamaha YFM 700 Grizzly
2009 Yamaha YFM 550 Grizzly
2008 Yamaha YFM 700 Grizzly
2007 Yamaha YFM 700 Grizzly
