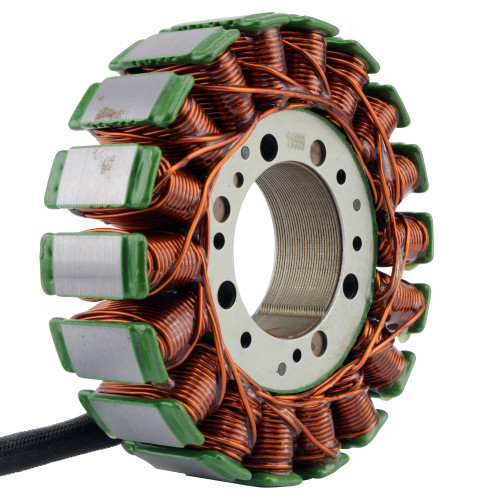

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 65 mm
Thickness : 23 mm
Length of wires stator to grommet : 182 mm
Length of wires grommet to plug : 763 mm
Length of pickup coil's wire to grommet : 105 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Light Grey to Dark Grey = 500 ohms +-20%
2018 Yamaha YXZ 1000 R EPS SS
2018 Yamaha YXZ 1000 R EPS
2018 Yamaha YXZ 1000 R
2017 Yamaha YXZ 1000 R
2016 Yamaha YXZ 1000 R
