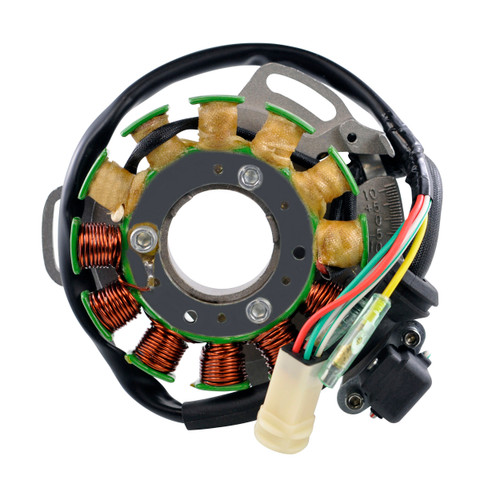

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%
1994 Yamaha YFZ 350 Banshee
1993 Yamaha YFZ 350 Banshee
1992 Yamaha YFZ 350 Banshee
1991 Yamaha YFZ 350 Banshee
1990 Yamaha YFZ 350 Banshee
1989 Yamaha YFZ 350 Banshee
1988 Yamaha YFZ 350 Banshee
1987 Yamaha YFZ 350 Banshee
