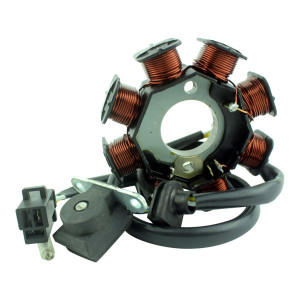

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
Dimensions :
Interior diameter : 32 mm
Exterior diameter : 88.5 mm
Thickness : 17 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Number of poles : 10
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 100 ohms +-20%
Source : Black/Red to Ground = 450 ohms +-20%
2019 Arctic Cat 150 Utility 2x4 Carb L/C
2018 Arctic Cat 150 Utility 2x4 Carb L/C
2017 Arctic Cat 150 Utility 2x4 Carb L/C
2016 Arctic Cat 150 Utility 2x4 Carb L/C
2015 Arctic Cat 150 Utility 2x4 Carb L/C
2014 Arctic Cat 150 Utility 2x4 Carb L/C
2013 Arctic Cat 150 Utility 2x4 Carb L/C
2012 Arctic Cat 150 Utility 2x4 Carb L/C
2011 Arctic Cat 150 Utility 2x4 Carb L/C
2010 Arctic Cat 150 Utility 2x4 Carb L/C
2009 Arctic Cat 150 Utility 2x4 Carb L/C
