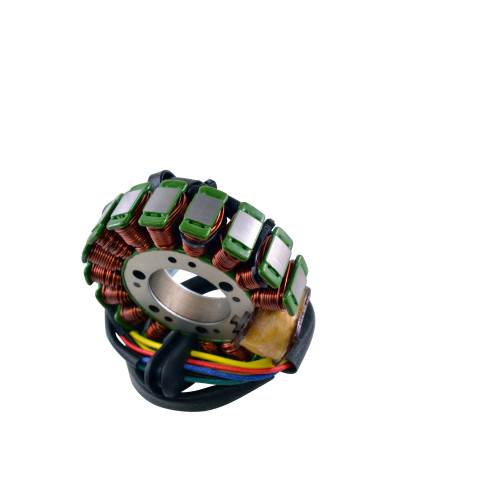

Stator for Suzuki LT 160 E Quadrunner LTF 160 Quad Runner Manual 1989-2001

No reviews yet Write a Review
SKU:
ST735
Stator for Suzuki LT 160 E Quadrunner LTF 160 Quad Runner Manual 1989-2001
$189.50

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
Stator

Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 12mm
Length of wires stator to plug : 400mm
Length of pickup coil's wire to plug : 380mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.2 ohms +/-20%
Pickup : Green to Blue = 425 ohms +/-20%
Source : Brown to Black = 330 ohms +/-20%

Pick-Up Coil

Dimensions:
Bracket center to center: 30mm
Wires length : 380mm

Other specifications:

Wire to wire resistance:
Blue to Green = 425 ohms +/-20%
