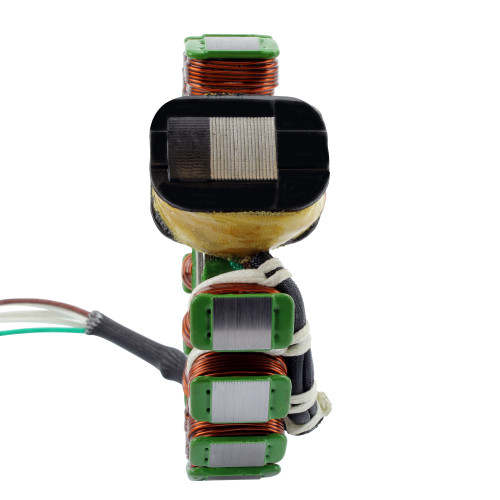

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm
Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up : Red to Blue = 221 ohms+/-20%
Pick up :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%
1989 Yamaha YFM 350 Warrior
1989 Yamaha YFM 350 Big Bear 4x4
1988 Yamaha YFM 350 Warrior
1987 Yamaha YFM 350 Warrior
1987 Yamaha YFM 350 Big Bear 4x4
