625W SPLYT Dual Stator + SERIES Voltage Regulator for Yamaha

Why use the SPLYT Technology?

As featured by Dirt Trax television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures while providing increased output for accessories. Using a dual output stator with two separate 3 phase windings, this system splits the power generated between 2 voltage regulators. Each regulator then operates with only half the load, allowing them to maintain a lower temperature and increase reliability, even at higher power levels.

This kit includes:

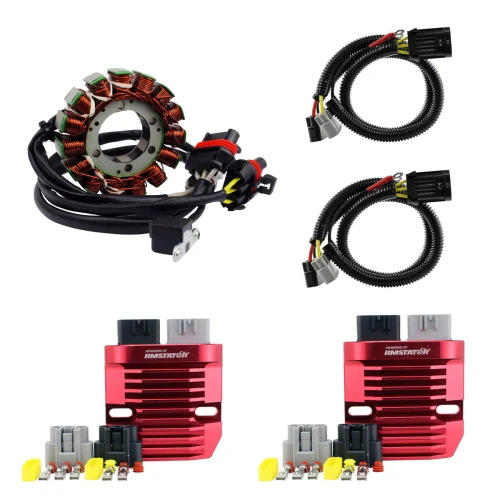

• RMSTATOR SPLYT Stator
• Two SERIES voltage regulators
• Two automotive grade wiring harnesses with OEM-quality heavy-duty connectors and terminals
• Complete installation instructions

SPLYT Dual Output Stator:

Dimensions:
Interior diameter: 43 mm
Exterior diameter: 105 mm
Thickness: 20 mm
Length of wires Stator to grommet: 200 mm
Length of wires grommet to plug: 800 mm
Length of pickup coil's wire to grommet: 85 mm

Other specifications:
Number of wires: 8
Number of plugs: 3
Number of pins: 8
Number of poles: 15

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.1 ohms +/-20%
Alternator: Black to Black = 0.1 ohms +/-20%
Pickup Coil: White to Grey = 484 ohms +/-20%

Machined Aluminum SERIES Regulator:

Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Harness:
Wires length: 600 mm
Number of yellow wires: 3
Number of red wires: 1
Number of black wires: 1
Number of plugs: 3
