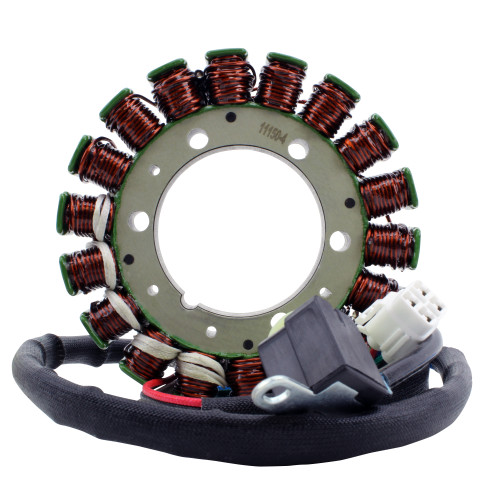

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 150 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 450 ohms +/-20%
Position sensor : Red To White/Blue = 0.4 ohms +/-20%
2014 Yamaha YFM 350 Grizzly
2013 Yamaha YFM 350 Grizzly
2012 Yamaha YFM 350 Grizzly
2011 Yamaha YFM 350 Grizzly IRS
2011 Yamaha YFM 350 Grizzly
2010 Yamaha YFM 350 Grizzly IRS
2010 Yamaha YFM 350 Grizzly
2009 Yamaha YFM 350 Wolverine
2009 Yamaha YFM 350 Grizzly IRS
2009 Yamaha YFM 350 Grizzly
2008 Yamaha YFM 660 Grizzly
2008 Yamaha YFM 350 Wolverine
2008 Yamaha YFM 350 Grizzly IRS
2008 Yamaha YFM 350 Grizzly
2007 Yamaha YXR 660 Rhino
2007 Yamaha YFM 660 Grizzly
2007 Yamaha YFM 350 Wolverine
2007 Yamaha YFM 350 Grizzly IRS
2007 Yamaha YFM 350 Grizzly
2006 Yamaha YXR 660 Rhino
2006 Yamaha YFM 660 Grizzly
2006 Yamaha YFM 350 Wolverine
2006 Yamaha YFM 350 Bruin
2005 Yamaha YXR 660 Rhino
2005 Yamaha YFM 660 Grizzly
2005 Yamaha YFM 350 Bruin
2004 Yamaha YXR 660 Rhino
2004 Yamaha YFM 660 Grizzly
2004 Yamaha YFM 350 Bruin
2003 Yamaha YFM 660 Grizzly
2002 Yamaha YFM 660 Grizzly
