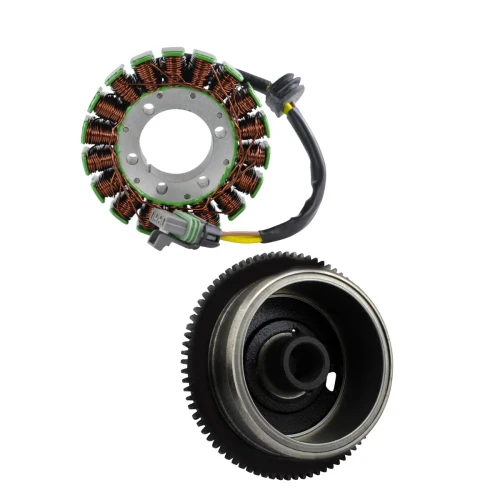

Kit Stator + Improved Magneto Flywheel

Brand new Stator + Flywheel

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested

Stator:

Dimensions :
Interior diameter: 39.5 mm
Exterior diameter: 106 mm
Thickness: 25 mm
Length of wires stator to grommet: 50 mm
Length of wires grommet to plug: 140 mm

Other specifications :
Number of wires: 4
Number of plugs: 1
Number of pins: 4

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5ohms +/-20%

Flywheel:

Dimensions:
Exterior Diameter: 131 mm & 168 mm
Interior Diameter: 109 mm
Interior Diameter Center Housing: 29 mm
Exterior Diameter Center Housing: 40 mm
Thickness (exterior): 60 mm
Thickness (interior): 49 mm
