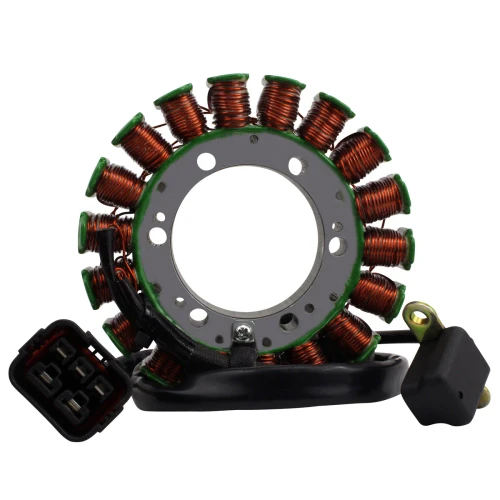

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm
Thickness: 20 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 450 mm
Length of pickup coil's wire to grommet: 80 mm
Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +/-20%
Alternator: Yellow to ground = O.L
Pickup: Blue/Yellow to Green/White = 220 ohms +/-20%
| Year | Make | Model |
|---|---|---|
| 2013 | Honda | MUV 700 Big Red |
| 2012 | Honda | MUV 700 Big Red |
| 2011 | Honda | MUV 700 Big Red |
| 2010 | Honda | MUV 700 Big Red |
| 2009 | Honda | MUV 700 Big Red |
